Brand name	OEM & ODM/HARBER

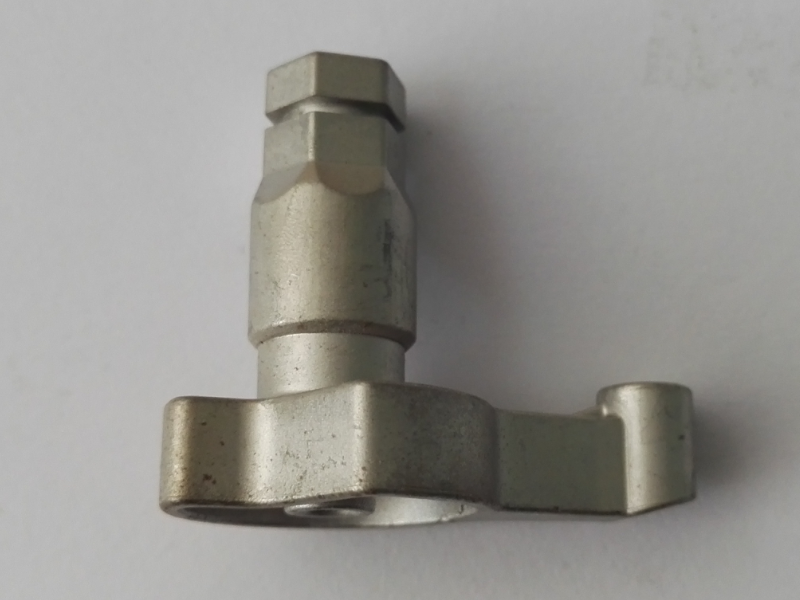

Product type	Lock Spindle MIM Parts
Product Model	HBMIM-001B
Material	Stainless steel 304,316L,17-4PH,TI,MIM4605,Fe2Ni
Post-Sintering	Polishing,Wire-drawing,Sandblasting,Plating,Coated,etc.
Size	Custom
Tolerance	10mm±(0.02-0.04)mm
Weight	≤200g
Forming Method	Metal  Injection Molding
Sintering method	Catalyze degrease  sintering
Sintering environment	Vacuum
Mold material	Steel
Application	Lock  industry
Shape	Custom
OEM	Accept
QC system	100% inspection before shipment
Payment terms	T/T at sight, Paypal, Western Union,etc.
Lead time	25-30 working days
Supply capability	500000 Piece Per Month
Packaging	PP bag / Anti-static film / anti-static plastic disc

Precision MIM parts
High purity, low inclusion MIM parts
Irregular and spherical powder shape
Low oxygen content MIM parts
Powder Injection Molding (PIM), which encompasses Metal Injection Molding (MIM) ), is a new type manufacture technology which combines plastic injection molding process with powder metallurgy process. It is a net-shape process for the manufacturing of high volume high precision components for use in a diverse range of industries. MIM parts can now be found in all areas of life, from our cars and trucks to watches, dental braces,  door safe lock, mobile phones, IT equipment, DIY tools and much more.

Why Choose MIM?

♦ Machining free (achieve sharp angle of R ≤ 0.1mm; Depth of Parallelism ≤ 0.02; Ra ≤ 1.6μm; tolerance in±0.025mm-±0.05mm)
♦ Excellent geometrically complexity ( achieve a hole of 0.4mm, thin wall of 1mm )
♦ More than 98% of material utilization rate
♦ Part-to-part uniformity
♦ More than 95% of theoretical density, and its performance is comparable with forging parts.

There are various types of MIM raw material with it own special characteristics to choose from, it could help to meet your requirements from carbon iron to stainless steel.Harber-MIM is a export and experienced customed MIM factory in China.
